Waveshare POE M.2 HAT+ (B) for Raspberry Pi 5, PCIe to M.2, Power Over Ethernet, NVMe SSD Support, IEEE 802.3af/at
Product details
| Management number | 212361735 | Release Date | 2026/04/06 | List Price | $12.28 | Model Number | 212361735 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

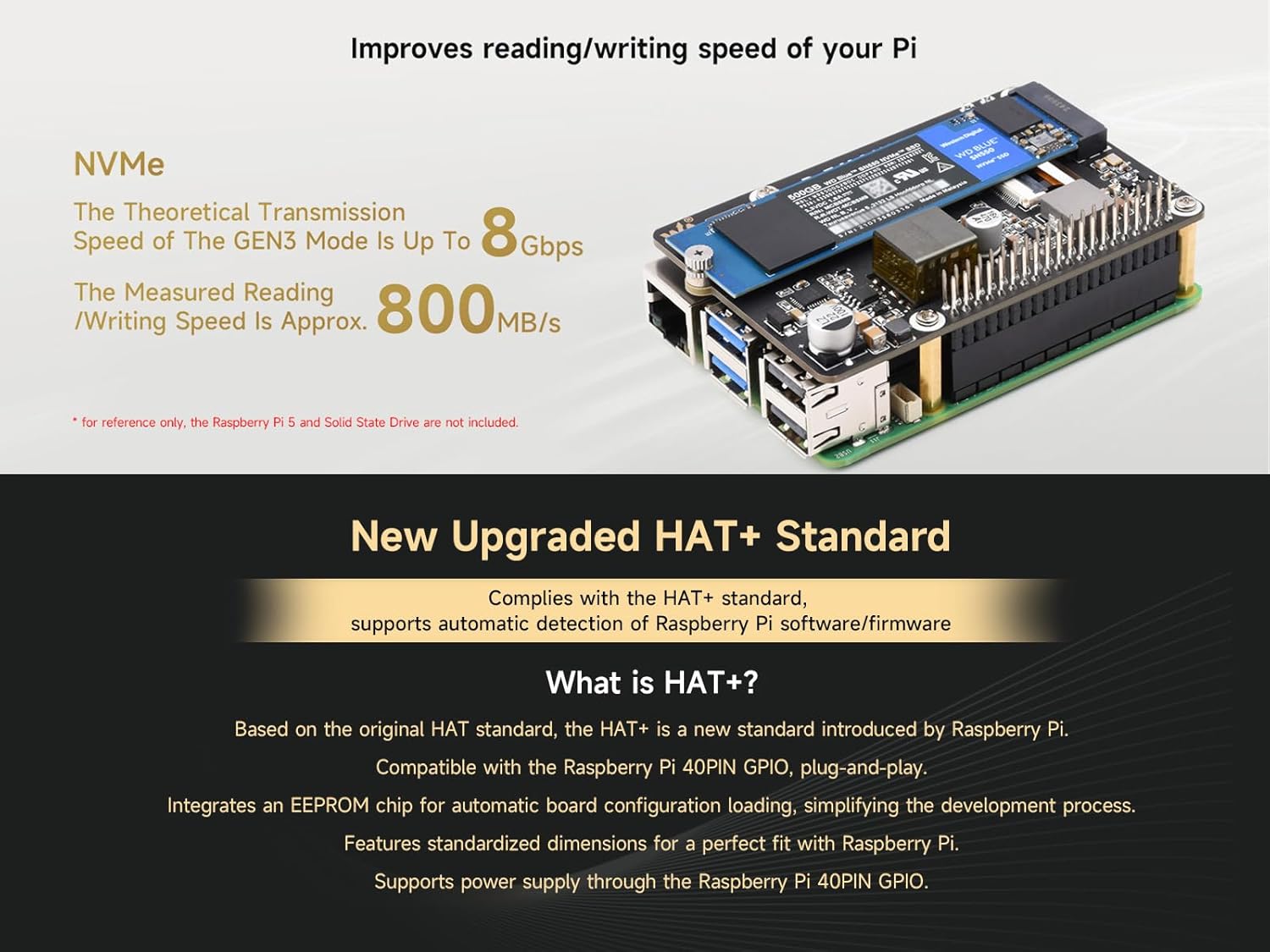

Overview PCIe to M.2 Adapter with PoE Function (B) for Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, IEEE 802.3af/at PoE Network Standard, High-speed Reading/Writing Features Standard Raspberry Pi 40pin GPIO extension header, compatible with Raspberry Pi 5 (not applicable to PI4B and PI3B) Supports Power over Ethernet (PoE), supports IEEE 802.3af/at PoE network standard Adopts fully isolated Switch Mode Power Supply (SMPS) mode power Supports NVMe protocol M.2 interface hard drives, featuring high-speed read and write, and high work efficiency PCI-E×1 Gen2 or Gen3 mode Only supports PI5B Compatible with M.2 hard drives of 2230 / 2242 / 2260 / 2280 sizes Onboard operational indicator lights, the PWR is continuously lit when powered on, and the ACT blinks during read and write operations, making the operational status easily visible Specifications PoE power input: 37V ~ 57V DC in Power output: --GPIO header: 5V 4.5A (MAX) --2P header: 12V 2A (MAX) Dimensions: 56.0 × 85.0 (mm) Network standard: IEEE 802.3af/at PoE Package Content PoE M.2 HAT+ (B) x1 16PIN PCIe cable x1 Solid State Drive mounting screw x1 Screws pack x1 NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!

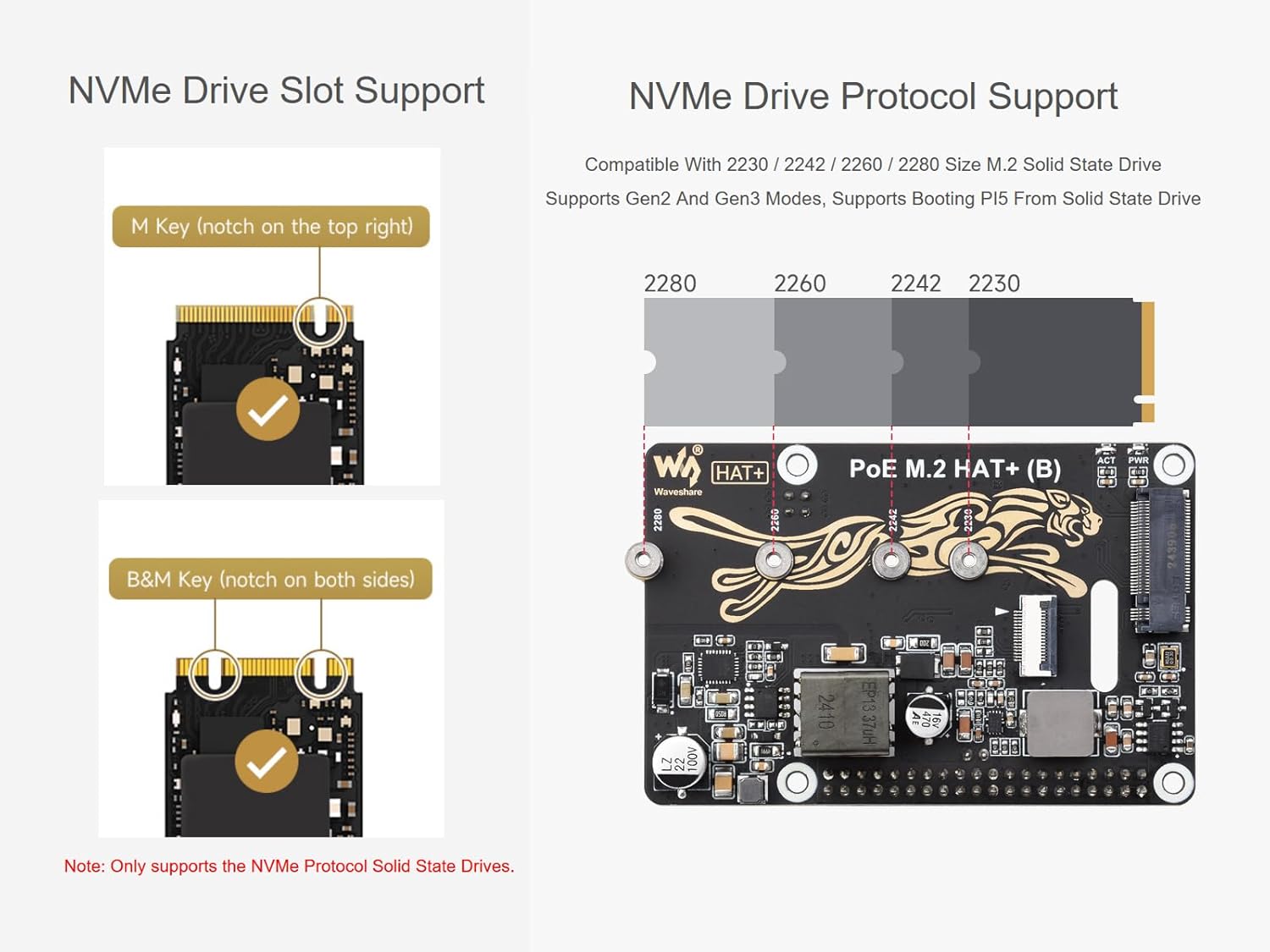

- POE M.2 HAT+(B) is a combination of Power over Ethernet (PoE) and PCIE to M.2 for Raspberry Pi 5, supports IEEE 802.3af/at networking standard, supports M.2 NVMe hard drives in 2230 / 2242 / 2260 / 2280 sizes, supports booting PI5 from Solid State Drive
- PCIe to M.2 with PoE HAT (B) only applicable to Raspberry Pi 5, connecting to PI5 via 16PIN PCIe cable. With standard Raspberry Pi 40pin GPIO stackable header, allows connecting other HATs
- Supports PCI-E×1 Gen2 or Gen3 mode
- Adopts fully isolated Switch Mode Power Supply (SMPS) mode power
- Onboard operational indicator lights, the PWR is continuously lit when powered on, and the ACT blinks during read and write operations, making the operational status easily visible
| UPC | 790885236082 |
|---|---|
| Brand | waveshare |
| Model Name | Pi 5 NVMe POE HAT+ Board (B) |
| Manufacturer | Waveshare |
| BuiltIn Media | PoE M.2 HAT+ (B), 16PIN PCIe cable, Solid State Drive mounting screw, Screws pack |
| Operating System | Raspberry Pi OS |
| Compatible Devices | Raspberry Pi 5, NVMe M.2 SSDs (2230, 2242, 2260, 2280), Keyboards, Mice, Displays, Other HATs compatible with RPi5 |
| RAM Memory Technology | LPDDR4 |
| Connectivity Technology | Ethernet, PCIe |
