Industrial Heavy Duty Drawer Slide with Lock 250lb Load Capacity Drawer Rails 3-Fold Full Extension, Ball Bearing Rails Track Glides, Side Mount, 1-Pair(500mm/20inch), JETTEQKBB-500MM/20INCH

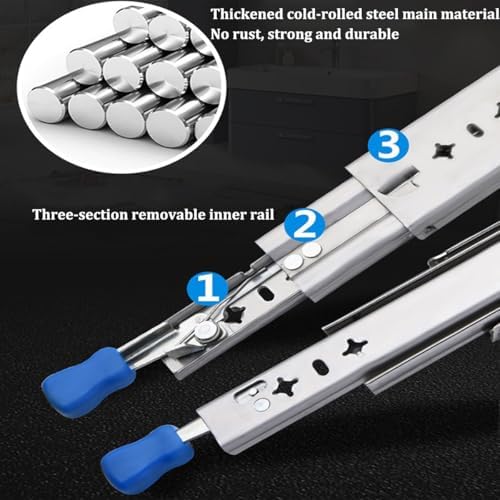

Our drawer slides are fitted with stainless steel screws for easy installation. Professional DIY application:3-Fold Full Extension,Side Mount.The slide rail can be disassembled for installation.Suitable for Goods shelf,Mechanical Cabinets,Industry-used drawer,RV,Truck,Vending machine,etc. Three-section interlocking function:Press and hold the lock handle to unlock and then pull it to the full extension of the slide rail to lock naturally.On the basis of the 3-Fold full extension, pressing the lock handle and continuing to pull it will remove the slide rail for easy installation. Specification Material: Cold Rolled Steel Color: Silver Process: Galvanized Finish Package Include 1 Pair of Heavy-Duty Drawer Slides Installation Steps 1. Find two horizontal lines in the installation position on both sides of the cabinet, and fix the outer fixed slides to the horizontal lines on both sides with screws; (Note: the positioning of both sides must be parallel). 2. Completely pull the slide rail, and fix the drawer to the inner fixed rail with screws according to the horizontal line. 3. The installation is finished. Notes 1.Please note that the locking mechanism only works when the drawer is fully closed or fully open. 2. The space between drawer and cabinet wall need to be 19mm/0.75in each side 3.Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.

• 【Installation note】The space between drawer and cabinet wall need to be 0.75in each at left and right side,total 1.5in ( inside cabinet width - outside drawer width= 1.5in )一 Note:For installation,make sure the two slide rails parallel to each other,and make sure the drawer portion slides parallel to the cabinet portion slides and in the same level.

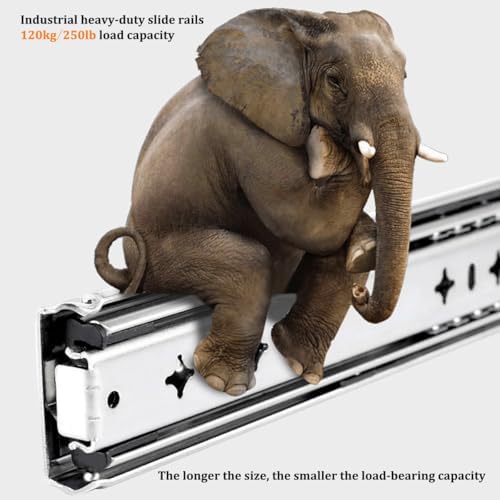

• 【Industrial Grade Heavy Load Capacity】Made of Q235 steel plate, thickness 2.0mm, with high density and high strength, the carrying capacity is 5 times more stronger than that of ordinary ones. The longer slide, the less load capacity.
• 【30 years service life】The drawer slides' surface are treated with electroplated blue zinc, therefor it's with oxidation resistance , the service life of the slide rail could be 30 years at least.
• 【With hold-still lock】There is a handle to lock and unlock.When it is fully extension or fully closed,the slides will be hold still automatically (in locking state),which can prevent from sliding casually and keep your drawer stable and safe. Press the lock handle on both sides of the pair of slides at the same time gently,it's unlocked and get back in free sliding.

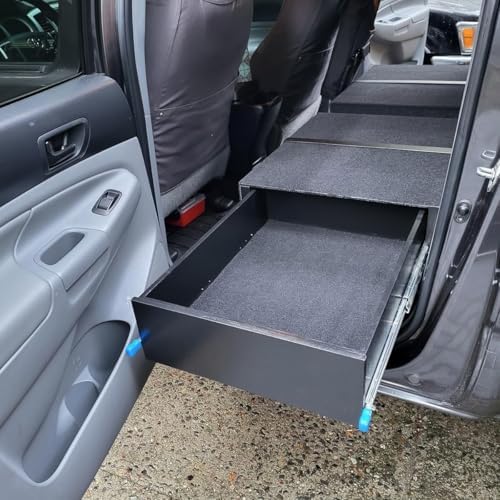

• 【3-fold full extension】The "3-fold full extension"enable the slides to fully extend, so the drawer can be pulled out completely, which allows for the entire drawer's storage to be accessed easily; Application range: Goods shelf, Industrial drawers,Mechanical Cabinets, RV, Truck, Vending machine,safety drawers, exhibition drawers, heavy truck drawers,etc.
