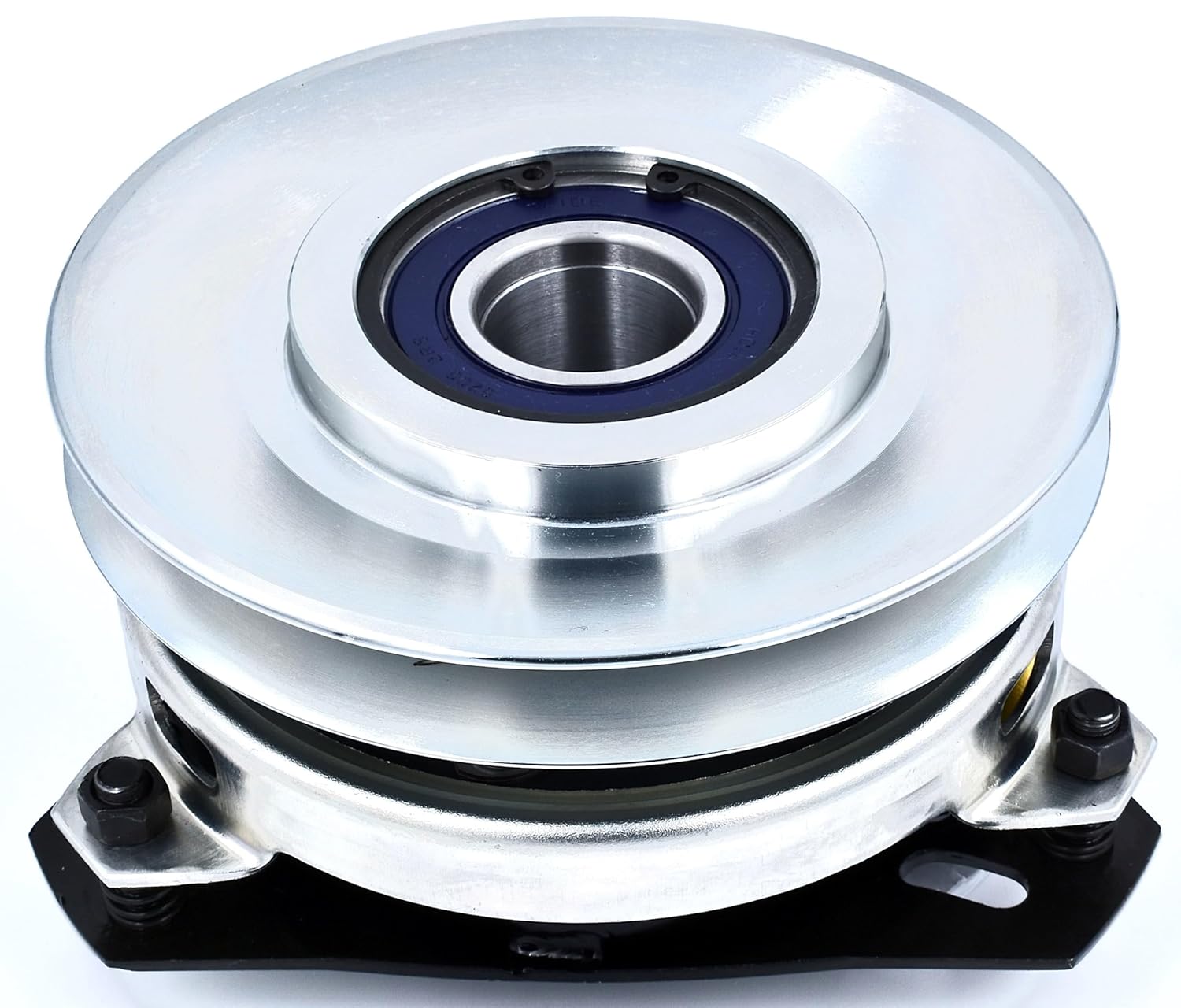

HD Clutches are designed by HD Clutch and Assembled in the USA. Higher Torque: 120 ft-lbs (OEM is 105 ft-lbs). We build this clutch with a larger coil to provide the maximum gripping strength to prevent damaging micro-slipping during tough cutting conditions. We use Machined Billet Pulleys for several reasons. The first, it is easy to damage formed pulley and damage (even a small stone nick) damages the belt with every rotation. With our Billet Pulley design we include a snap ring so the bearing is replaceable, making this clutch rebuildable. Lastly and most importantly, a Billet Pulley does not spread during tough loads and maintains a Constant blade speed. Allow us to explain: When a pulley spreads the belt sinks in slightly and this acts like a smaller pulley and slows the belt speed down. It’s not much but it also wears the belt more. Higher Torque: We add a few more windings to our coils to provide the maximum gripping strength to prevent damaging micro-slipping. Clutches all run very hot; we use a composite material instead of plastic to allow the heat to dissipate much faster. This makes the HD Clutch run much cooler; extending the bearing and clutch life. HD Clutch wrote the Bearing specifications to include Premium C3 Rated Bearings and high temperature rated synthetic grease to combat heat. Less Heat = Extended Life.
| Color | Silver |
|---|---|
| Model | 5215-140 |
| Wattage | 280 watts |
| Terminal | Spade |
| Brand Name | HD Switch |
| Unit Count | 1.0 Count |
| Switch Type | Pto |
| Circuit Type | 1-way |
| Contact Type | Normally Open |
| Manufacturer | HD Switch |
| Material Type | Alloy Steel |
| Mounting Type | Surface Mount |
| Connector Type | Plug In |
| Control Method | App, Sensor |
| Current Rating | 20 Amps |
| Operation Mode | OFF-NONE-ON |
| Item Dimensions | 8.5 x 11.5 x 6.5 inches |
| Number of Items | 1 |
| Contact Material | Metal |
| Operating Voltage | 14 Volts |
| Specification Met | RoHS |
| Number of Positions | 1 |
| Upper Temperature Rating | 240 Degrees Fahrenheit |
| International Protection Rating | IP67 |
