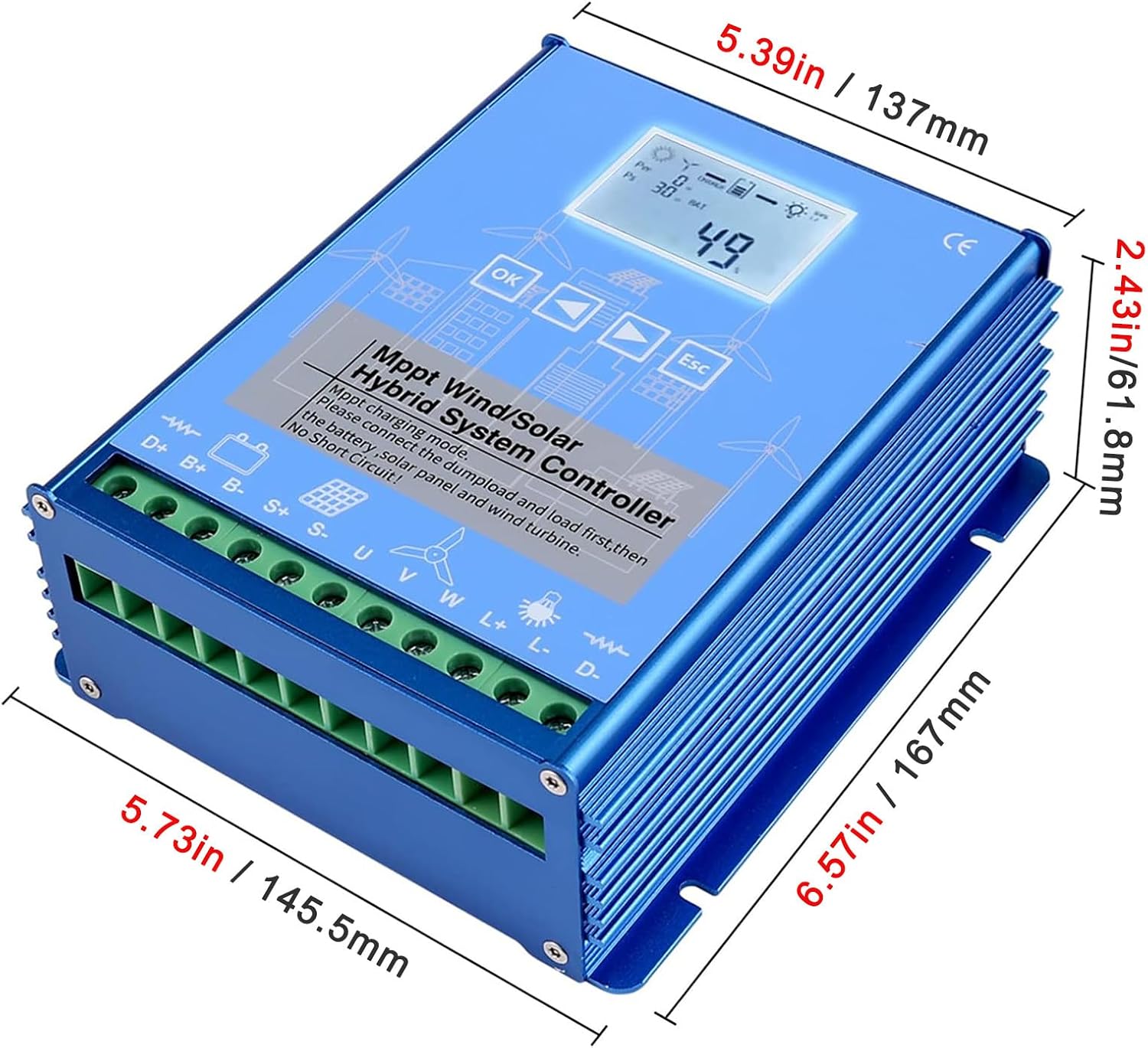

3000W Mppt Wind Energy Hybrid System Charge Solar Controller, Wind Solar Hybrid System Charge Controller for Dump Load Wind Turbine Generator,48V

This kind of wind solar hybrid streetlight controller is special design for small off-grid he course of which wind generator and solar panels charge to batteries safely and efficiently.★ Features:- Fan charging, intelligent MPPT boost regulation.- PWM fan stepless discharge, external discharge device, solar intelligent separation charging.- Dual power supply function: Battery + solar power supply.- Various load output working modes are adjustable.- The internal circuit board of the controller is sprayed with three anti-paints to prevent dust, moisture and static electricity.★ Specifications:- Material: Aluminum Alloy- Maximum Output Current: 30A- Net Weight: 2.2kg / 4.85 pounds- Display Screen: LCD Display- Display Parameters: Voltage, Battery Power, Current, Power, Charging Mode, Temperature, etc- Controller Power Supply Mode: Battery or Photovoltaic Panel- Control Mode: MPPT Fan Boost Charging Function, PWM Discharge Function, PWM Over-current Limiting Function- Working Modes: Pure Light Control Mode, Normal Open Mode, Light Control + Time Control Mode (four time periods + morning light)★ Packing List: - 1 x Wind Solar Hybrid Charge Controller- 1 x External Discharge Resistor- 2 x Connection Cables- 1 x Instruction Manual★ Notices:- Correct connection sequence.- Please connect the wires between the battery and the controller- Please allow slight size difference due to different manual measurement.- Please feel free to contact us with any questions you may have.

• 【Large LCD Display Screen】Larger LCD screen design, easy to browse and handle, display parameters such as voltage, battery level, current, power, load mode, temperature, etc., DC load has 3 output modes, each of which can be set differently.
• 【MPPT & PWM Technology】The fan charging part adopts MPPT technology, which can continue to charge efficiently even at low wind speed. Stepless unloading function, including external unloading load resistor. The solar panel charging adopts PWM technology and is connected in series through MOS tubes.
• 【Multiple Protection】Built-in solar reverse connection protection, overcharge, undervoltage and overload protection, battery reverse connection protection and open circuit protection, lightning protection, etc., safe and reliable.
• 【Intelligent Stable System】LCD wind solar controller provides selective switching between Chinese and English, the parameters are automatically set after selecting the battery type, users can also adjust according to their own needs, and the controller controls the charging voltage to be stable.
• 【Applicable Scenarios】This charge controller is suitable for all 12V or 24V or 48V batteries, including lithium batteries. Suitable for 3000W wind turbines and solar panels, suitable for wind and solar hybrid systems for houses, ships and street lights.
